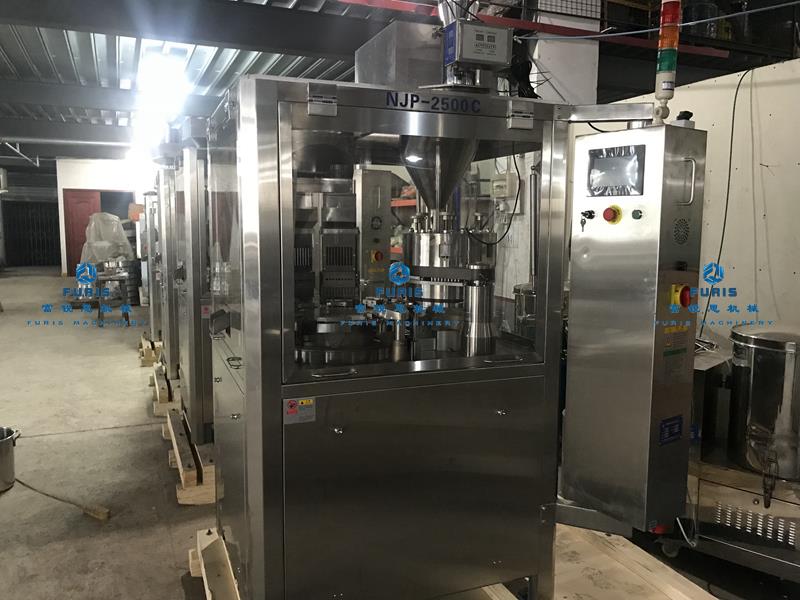

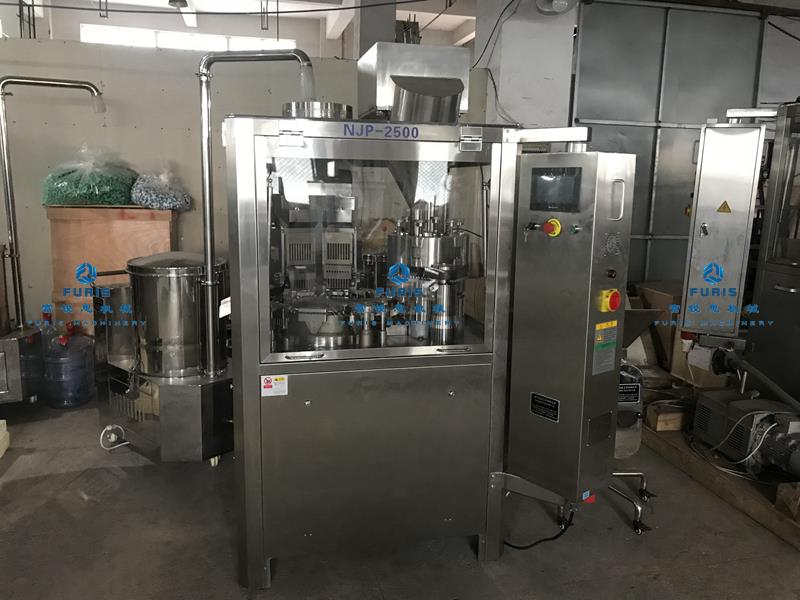

Best New Automatic Capsule Filling Machine 00-5 Size

Best New Automatic Capsule Filling Machine 00-5 Size

This machine is used for filling the powder or pellet into the capsule.

Product Details

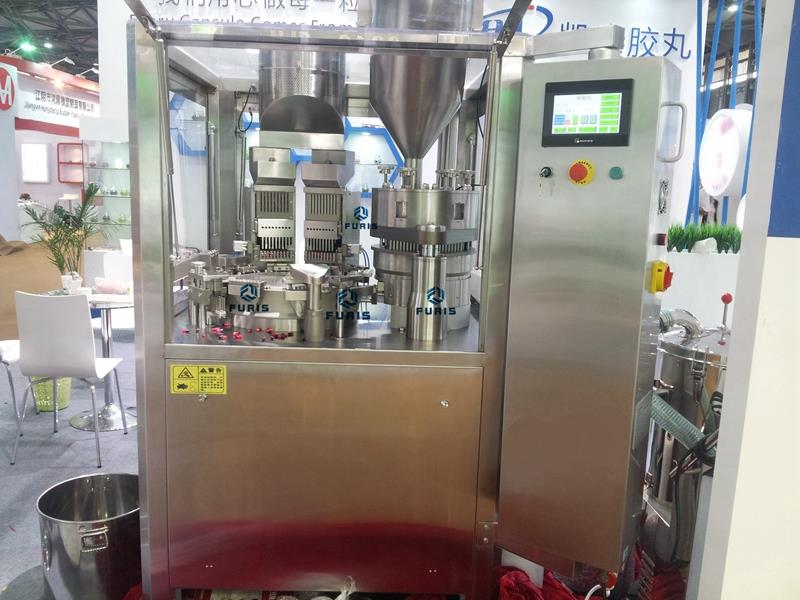

2500 胶囊填充机_副本1.jpg

Applying:


  Used for pharmaceutical, medicine, and chemicals (powder, Pellet, granule, pill) vitamin, foodstuff and animal drug, etc.



Capsule Part: Loading the empty capsule into capsule hopper, the empty capsule then get into capsule sowing plate, automatic make U turn, divide the top and body of capsule

when pass by vacuum, automatic filling while come into dosage tray, it has automatic reject function if the capsule is flat or its top and body can not be divided. After that, automatic locking and output the final products.



Powder or pellets part: Loading the medicine into medicine hopper, then the medicine automatic come down, (the machine stop automatically while no medicine), dosage tray

going filling for five times, make the medicine save into medicine pole. Finally, medicine is filled into empty capsule.



Futures:


1.Touch-Screen, PLC program control panel with LCD.
2.The capsule qualified over 99%.
3.Removable powder hopper allows easy cleaning and auger adjustment allows change fills weight easily.
4.Speed and length of closed capsule are easy to adjust.
5.Electrical Appliance control system is in accordance with CE and international standards.
6.At the quick and accurate change part,easily and removable rotary table and ring carrier assembly is setted.
7.Fully enclosed rotary table and dosage station for integration of the whole capsule filling plants.
8.Large cam mechanism keeps the rotating table of mould together with the whole equipment running in balance, and completely guarantees the machine operating with highest precision and accuracy.



Parameters:




Model

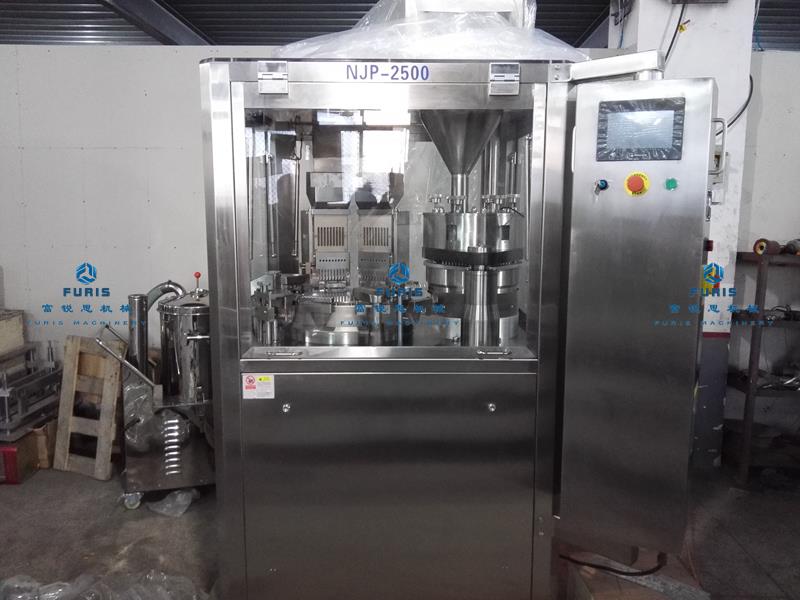

NJP-2500



Capacity ( capsule/min)



2500



Capsule Size



No.00-5



Filling rate



=>99%



Power



7kw



Vacuum pump



0.02-0.06Mpa



Noise



<80dBA





Dust collector



700m3/H, 2X105pa, 350*700*1000mm,



40kg



Oversize and weight of machine



1150*1100*1970mm, 1600kg



Configuration:





Name



Specification



Original place



QTY

Exactitude Intermission

Graduator

83D-06120 2L

83D-10250 2R



   Taiwan

1



Transducer



6SE420-2UD21-5AA1



Delta Taiwan



1



Main motor



   R27DM90L4

WB150



GPG Taiwan



1



Touch screen



TK6070Hi



 WENVIEW Taiwan



1



PLC



VFD015B21A



Delta Taiwan



1



Breaker



3VU1340



SIEMENS



4



contactor



3TB43



SIEMENS



1



contactor



3TB41



SIEMENS



2



Middle relay



MY2NJ



SIEMENS



3



Linear bearing



SDE40Y

SIEMENS



4



Linear bearing



SDE20Y

SIEMENS



8



Linear bearing



SDE16Y

SIEMENS



    10



Linear bearing



SDE12Y

SIEMENS



    18



Needle bearing



IKDCF18

SIEMENS



1



Needle bearing



IKDCF12

SIEMENS



5



Dust collector



2.2 KW



Shanghai



1



Vacuum pump



2BV2061-NC



Shanghai



1



Sensor



LJC30A4-H-A/A B2



Shanghai



1



Air switch



5SJ63-32A



SIEMENS



1



Air switch



5SJ63-10A



SIEMENS



3



Air switch



5SJ63-6A



SIEMENS



1
