Auto Capsule Filling Gluing Machine Line For Liquid NJP-600

Furis Machinery Group is one of the most reliable manufacturers and suppliers of auto capsule filling gluing machine line for liquid njp-600 in China. Our factory offer high quality equipment made in China with competitive price. Welcome to place an order.



Features:

1. It is of touch screen control, multi-system integrated and its degree of automation is higher;

2. Conventional feeding and vacuum feeding are optional in accordance with applicable scene;

3. Material-lacking overload is under automatic protection which can ensure materials' smooth supply;

4. Capsule's baiting, orientation and in-place are accurate and speed can be controlled;

5. Sizing treatment is even and secondary sizing treatment technology locks sealing effect;

6. It adopts highly-sensitive temperature sensor, by which, temperature of glue box can be real-time controlled;

7. Glue box adopts asbestos heat insulation for design, by which, operations are safe and reliable;

8. It adopts precision pneumatic control system which ensures glue box's working smoothly up and down and forward and backward;

9. Glue box and machine body adopt separating and closing design, by which, it can be easily disassembled and easily cleaned;

10. Its originally created function of capsule chain plate positive and negative conveying can effectively extend conveying distance;

11. It adopts reciprocating conveying mechanism, it can be naturally dried which does not affect drug properties inside capsule;

12. Its part contacted with drug is manufactured fully by stainless steel which conforms to GMP standard.

Working Principle:

After materials of hard capsule are baited from hopper, capsule caps and capsule bodies are neatly aligned on conveying mechanism along the same direction by positioning mechanism, after passing through sizing treatment mechanism, connection place of capsule cap and capsule body is automatically coated with safety spill-proof glue (adopting secondary sizing treatment technology to ensure sizing treatment effect) by sizing

treatment wheels, then they are naturally solidified in process of conveying mechanism's reciprocating conveying and after product is rapidly dried, effect for sealing of hard capsule cap and capsule body will be achieved.

Detailed imagines:

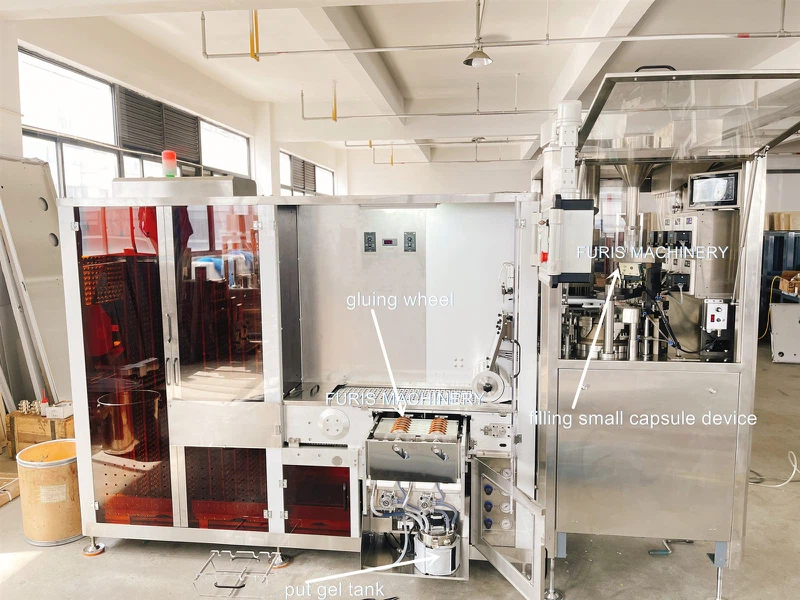

Liquid capsule sealing gluing

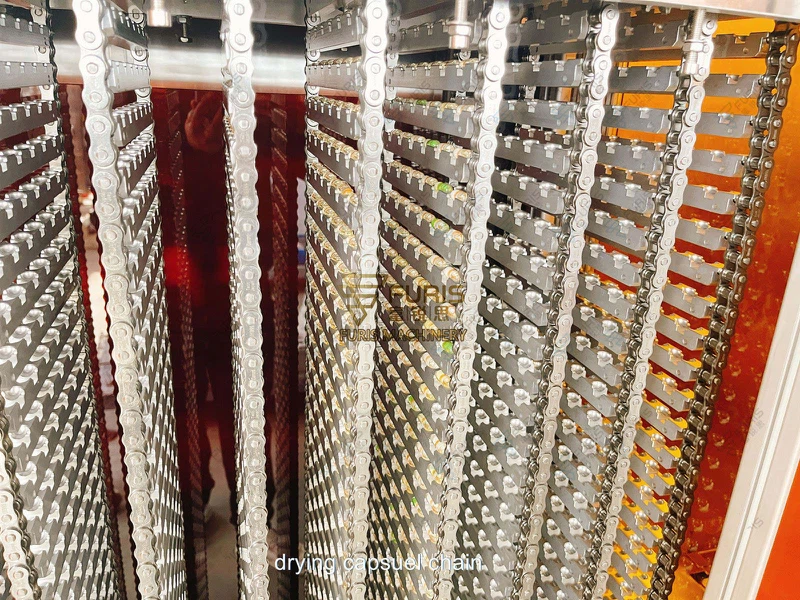

Drying capsule

Liquid capsule sample:
