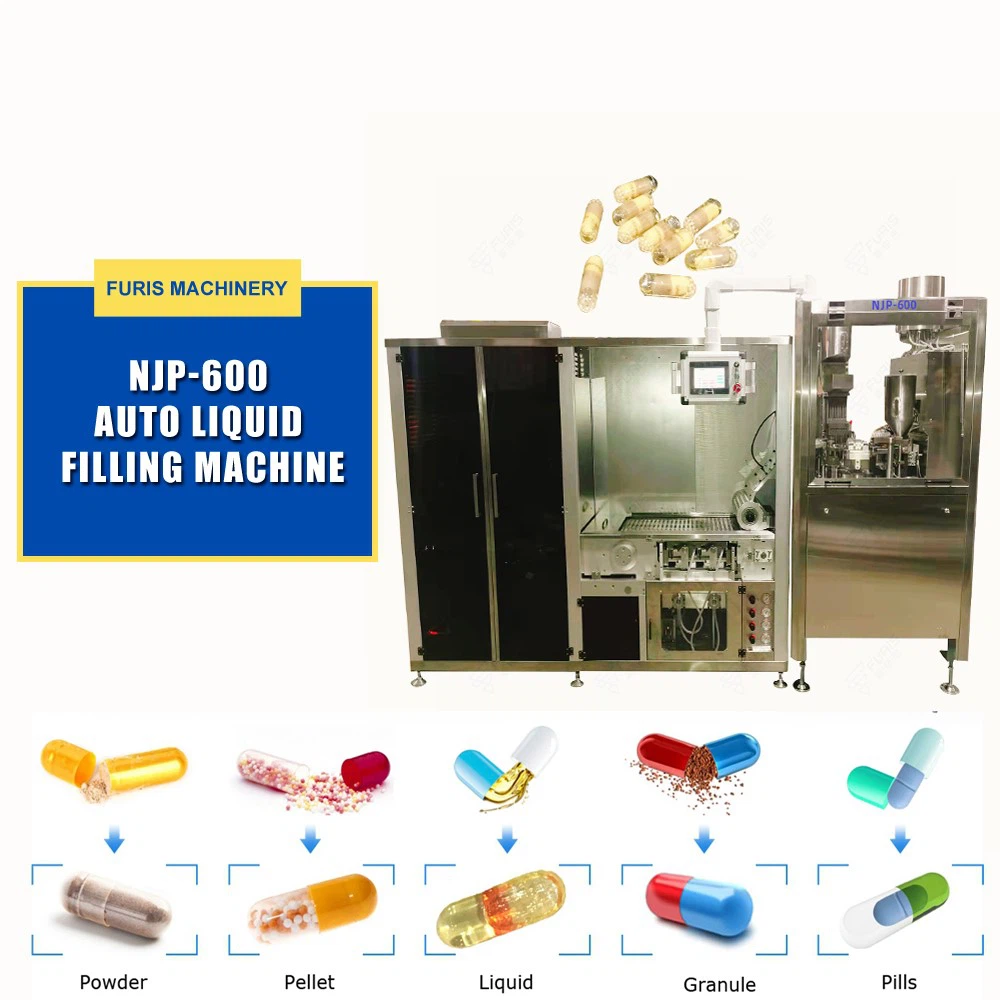

Automatic Liquid Capsule Filling Machine

Furis Machinery Group is one of the most reliable manufacturers and suppliers of automatic liquid capsule filling machine in China. Our factory offer high quality equipment made in China with competitive price. Welcome to place an order.





Feature:

It is of touch screen control, multi-system integrated and its degree of automation is higher;

2. Conventional feeding and vacuum feeding are optional in accordance with applicable scene;

3. Material-lacking overload is under automatic protection which can ensure materials' smooth supply;

4. Capsule's baiting, orientation and in-place are accurate and speed can be controlled;

5. Sizing treatment is even and secondary sizing treatment technology locks sealing effect;

6. It adopts highly-sensitive temperature sensor, by which, temperature of glue box can be real-time controlled;

7. Glue box adopts asbestos heat insulation for design, by which, operations are safe and reliable;

8. It adopts precision pneumatic control system which ensures glue box's working smoothly up and down and forward and backward;

9. Glue box and machine body adopt separating and closing design, by which, it can be easily disassembled and easily cleaned;

10. Its originally created function of capsule chain plate positive and negative conveying can effectively extend conveying distance;

11. It adopts reciprocating conveying mechanism, it can be naturally dried which does not affect drug properties inside capsule;

12. Its part contacted with drug is manufactured fully by stainless steel which conforms to GMP standard.

Parameters:

Model	NJP-600
Capacity ( capsule/min)	600pcs/min
Capsule Size	No.00#~ 2# and safety capsules a ~ e
Filling rate	=>99%
Power	7.75kw
Vacuum pump	0.02-0.06Mpa
Noise	<75dBA
Filling error	>300ml ≤±3％
Working temperature	21℃±3℃
Relative humidity of working environment	40～55％
Optional function	Filling granule device(optional)
Oversize and weight of machine	3565×1100×2100mm, 1500kg

MODEL	NF-260
Filling Dosage	Powder, Pellets, Tablet
Capsule Size	Capsule size 000#-5# and safety capsule A-E
Max Output (capsules/hour)	15600
Power	380V 50Hz 3KW
Noise Index	<80dBA
Overall Dimension (mm)	970×820×1900
Weight (kg)	500

Application:

It adopts multi-bore dosing, intermittent motion and frequency control. It is suitable for automatically completing capsule feeding, separating, filling, (waste capsule rejecting), closing, finished product ejecting for powder or micro pill medicine in capsule.

Factory:

We have made this machine for more than 15 years, compare the Bosch capsule filling machine,our price is only 1/3 of Bosch capsule filling machine, but the quality only different a little.
