Manufacturer full automatic hydraulic bath bomb shampoo bar press machine

Furis Machinery Group is one of the most reliable manufacturers and suppliers of manufacturer full automatic hydraulic bath bomb shampoo bar press machine in China. Our factory offer high quality equipment made in China with competitive price. Welcome to place an order.

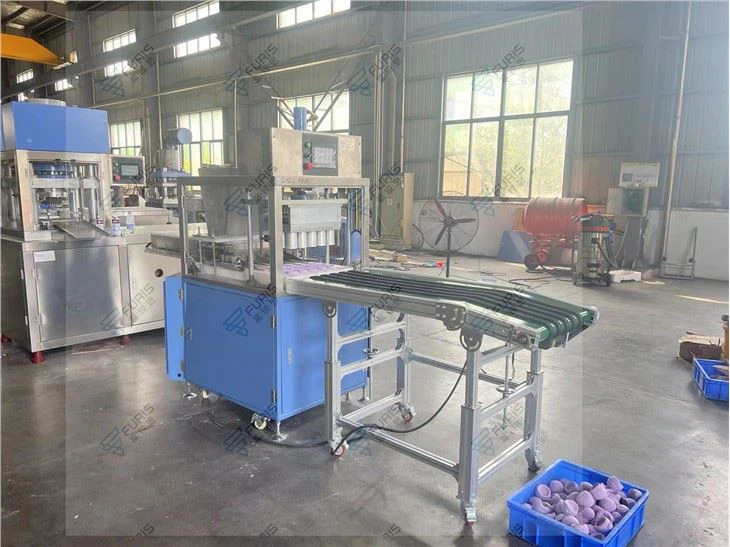

Are you a manufacturer looking for an efficient solution to save on labor costs and increase production? Look no further! Furis fully automatic bath bomb salt ball hydraulic press is the answer.

 With touch screen PLC control, all parameters can be easily adjusted on the touch screen, including machine pressure. The machine automatically feeds, presses, forms, and then pushes out the mold onto a conveyor belt. The mold also has an automatic demoulding device to ensure that the bath salt balls will not stick.

 This machine has wide applicability, both dry powder and wet powder can be used. With high output and fast speed, one machine one hour capacity can reach 10500pcs bath bomb, can replace up to 10 workers, which greatly saves labor costs for enterprises.

Features:



With touch screen PLC operation,easy operation,easy maintain,run very stable

With big pressure,with good forming effect,adopt the import hydraulic press system,the machine die can use many year no broken

This machine one time can press 1-25pcs bath bomb according to the ball bomb size

With big capacity it can reach 120,100,80,60,40,20pcs/min depends on the size of bath fizzy

Can make different size and shape bath bomb though changing the mould /die

With acrylic cover to protect the worker



Automatic bath bomb press machine is mainly used for press different shape and different size bath bomb,we can offer you full auto bath bomb press machine and semi-auto bath bomb press machine and auto bath bomb shrink packing machine bath bomb shrink sleeve labeling machine,our machine mainly export to USA Canada





Parameter:



Model	FRS-2	FRS-4	FRS-5	FRS-8	FRS-45	Model	FRS-590	FRS-150
Feeder volume	/	/	10L	40L	80L	Max film size	<590mm	15mm width two layers
Max pressure	250kg	500KG	5Ton(the pressure customize)	10Ton(the pressure customize)	45Ton(the pressure can customize)	packing size	L:100mm-450mm w:10mm-200mm	&Phi;30-&Phi;150mm
Max press bath bomb size	8cm	8cm	15cm(customize)	10cm(customize)	20cm(customize)	Max packing bath bomb	8cm customize	150mm customize
Capacity	240pcs per hour	420pcs per hour	720pcs per hour(according to the bath bomb size 1.75'')	5870-8100pcs per hour(according to the bath bomb size )	5870-8100pcs per hour(according to the bath bomb size )	Capacity	Max200pcs/min	Max 200pcs/min
Power	/	/	50w	3.5kw	5kw	power	20kw	11kw
Hydraulic oil	/	/	46#	46#	46#	Film type	POF	PVC PE
Air compressor	small	small	small	small	small	Air compressor	no need	no need
Cylinder volume			50L	100L	100L
Cooling type			air blow cooling	air blow cooling	air blow cooling
Machine weight	20kg	25kg	200kg	800kg	1500kg	Machine weight	1200kg	1000kg
Machine size	40*10*50mm	40*40*50mm	700*650*1800mm	1300*1650*1800mm	1500*1000*1800mm	Machine size	7500*1170*1500mm	4000*1000*2000mm



Some questions and answers about Automatic Hydraulic Bath Bomb Press Machine

1.How does the automatic bath salt ball pressing machine work?

The automatic bath salt ball pressing machine works by automatically compressing and forming bath salt mixtures into perfect shapes balls. It streamlines the production process and increases efficiency, making it easier for businesses to mass-produce bath salt products.



Workflow: Start - manual feed into the hopper or use the automatic feed machine - machine automatic push powder - upper mold press down- dower mold come out - automatic outputting



2.What are the components of an automatic bath salt ball pressing machine?



An automatic bath salt ball pressing machine includes control system, feeding system, pressing system and outputting system.



3.Are there any maintenance and cleaning requirements for the automatic bath salt ball pressing machine?



Yes, like any other piece of machinery, an automatic bath salt ball pressing machine requires proper maintenance and cleaning to ensure it continues to operate efficiently. Regular cleaning and lubrication are important, as is conducting routine checks for wear or damage to parts.  machine.



4. What’s the speed of the machine?

The full auto bath bomb press machine can press max 5 times per minute.

In the actual application process, for 1.75” ball, the speed of the machine can reach a stable 5000/H,which is more than 20 times the speed compared to manual.



5. Is there a special formula if using this machine?

The powder can’t be too wet or too dry. Too wet, it will block the feed mouth. Too dry, the machine pressure will be not enough. We have other high-pressure machine for dry powder.



6.I have bath salt balls in different sizes. Can I press them on one machine?

Yes. You just need to purchase additional molds for different sizes.



7.Will you teach me how to operate the machine?

Yes. We have tutorial videos to teach you operate the machine. And if you need help, we will be on-line to help.



8.May I ask if automatic machine can work in half-automatic mode?  If so I could make 2-color bombs this way. Put powder by hand 1 color after another. Is it possible?

It is possible. We can add the function to make this 2-color bombs. The machine also can work in automatic mode.

Our advantages



1. High quality + Economical Solution



Furis Group with China technology support match up your high quality requirements.

Furis Group economical price can provide you better budget control.

Furis Group strict quality control with ISO 9001 certification CE certification and other qualification can guarantee you avoiding any risk in machine selection or project implementation.



2. Professional Turnkey Project



Furis Group GMP experts and validation engineers can guide your project and documents match up the WHO GMP.EU GMP USA,etc

FRS factory general planning experts can ensure your project not only quality in all aspects,but also cost efficiency flexibility and expandability and security.

Furis Group professional designing and experienced engineering team can support your project optimal implementation saving labor time and cost.



3. One-stop Technical Service



Furis Group with worldwide partners can provide you current technology and know how of machine project validation and production.

FRS Mechanical and electrical engineers can make custom-made design to match up user's requirement specification.

and manufacturing according to European standard.

HM Energetic and professional team can provide you effectively one-stop technical service from sample trial testing

FAT,installation commissioning,SAT,training to documentation and validation.



Furis Group offer manual semi auto full auto bath bomb press machine and full auto bath bomb wrap machine to meet different customer with different capacity inquiry.Our machines mainly export to the Malaysia, United Arab Emirates, Saudi Arabia,India,United Kingdom, Poland, Italy, Spain, New Zealand, Thailand, South Korea, Belgium, France, Denmark, Australia,Hungary,Switzerland, Czech Republic, Germany, Latvia, Russia, Canada, United States more than 20 country.Welcome to OEM and distribute our machine in local place
