Furis Machinery Group is one of the most reliable manufacturers and suppliers of fully automatic capsule filling machine in China. Our factory offer high quality equipment made in China with competitive price. Welcome to place an order.

Product Introduction：

Our automatic capsule filling machine is a pharmaceutical equipment that integrates mechanical, electrical, and pneumatic systems. It uses a microcomputer programmable controller and touch panel operation, supports variable frequency speed regulation, and is equipped with an electronic automatic counting device, suitable for capsule specifications from 0 # to 4 #. The Furis Compy capsule filling machine achieves fully automated operation of capsule separation, filling, and locking through modular design. It has an integrated structure of a built-in filling seat and a measuring disk, combined with a three-dimensional adjustment mechanism to effectively solve the problem of powder leakage.

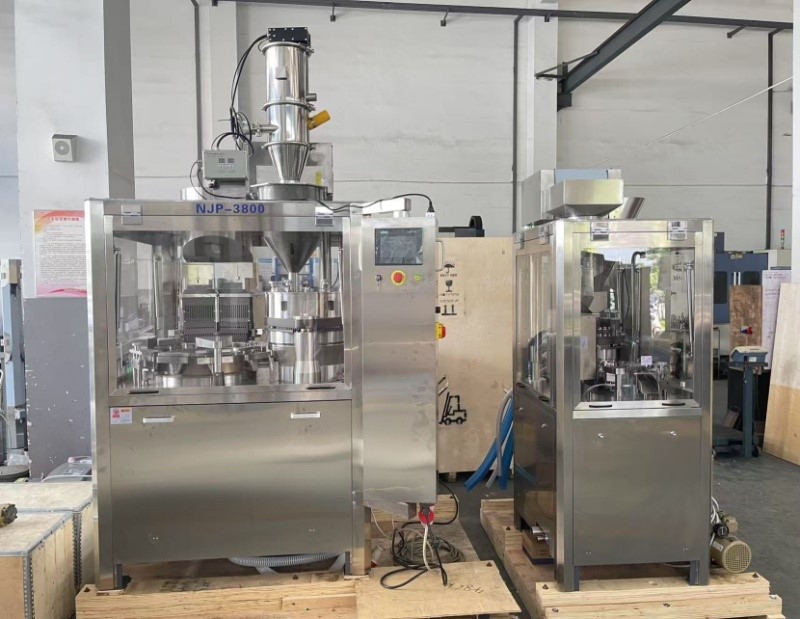

Fully automatic capsule filling machine 1

Product advantages:

1. Independently developed and improved the internal design of the mold turntable, and adopted original Japanese linear bearings, which have higher accuracy and longer service life than peer equipment.

2. Compared to our peers, we have added a pressure atomizing oil pump to the design of the cam's downward placement, which maintains lubrication in the cam groove, greatly reduces wear, and extends the service life of the components.

3. The upper and lower modules are designed with unidirectional movement, and the imported double lip polyurethane sealing ring provides better sealing performance.

4. The control panel is eye-catching and intuitive, using stepless variable frequency speed regulation.

5. Based on the lower plane of the measuring disc and a three-dimensional adjustment mechanism, the gap is more uniform and the loading difference is more accurate.

6. Equipped with safety protection devices for people and machines, and automatic shutdown devices for material shortage, achieving smoother and more reliable machine operation.

7. Added a combination of module blowing and suction to ensure clean and dust-free mold holes and improve machine efficiency.

8. Independently designing 2 chain wheels to drive 2 indexing boxes for separate division of labor (usually one chain wheel drives 2 indexing boxes in the same industry) reduces resistance, shares the pressure of operation, increases operating force, and has basically zero faults in this workstation.

Equipment specifications and technical parameters：

Equipment model and specifications	NJP-1200C Automatic Hard Capsule Filling Machine
Machine Weight	900kg
Overall Dimensions	1020 × 860 × 1970mm
Motor Power	5.75KW
Power Supply	Three-phase four-wire AC 380V; 50Hz
Maximum Production Capacity	1200 capsules/minute
Applicable Capsule Sizes	00# ~ 5# and safety capsules A ~ E
Capsule Feeding Rate	≥99.5%
Noise Level	≤75dBA
Filling Weight Variation	≤ ±3% (for 300mg and above; filled with 40~80 mesh granules after granulation and finishing)
Compressed Air	0.06m³/min, 0.3Mpa
Water Supply Requirement	Used with water-ring vacuum pump and water tank (circulating), or external water source
Vacuum Degree	-0.02 ~ -0.06 MPa
Water Flow Rate	250L/h
Inlet Pipe Inner Diameter	20mm
Drain Pipe Inner Diameter	27mm
Operating Ambient Temperature	21℃ ± 3℃
Workshop Height Requirement	≥2.6m (manual feeding); ≥2.8m (vacuum feeding)
Operating Ambient Humidity	40 ~ 55%
Exhaust Volume	300m³/h
Special Functions	Optional pellet filling device; powder collector (recycles filling powder via separate pipeline, no need for disinfection/sterilization, can be directly re-added to hopper)
Control System	Variable frequency stepless speed regulation, PLC control
Materials	Parts in direct contact with capsules and drugs: 304 and 316L high-quality stainless steel

NJP-1200 Series Closed Full-Automatic Capsule Filling Machine Outfit:

Description	Specification/Model NO	Place of Origin	unit/piece	Remarks
Exactitude intermission graduator	Ru83DS-10-150-2R-S2-V-SSS Ru83DS-06-120-2L-S1-V-SSS	Shandong china	Each one
main machine	2HP-1500W	Taibang china	one
vacuum pump	SZ-1.5	Shanghai china	one
cleaner	2.2KW	zhejiang china	one
Man-machine interface	TK6070Hi	Taiwan china	one
PLC	DVP14E	AirTAC	one
transducer	VFD015B21A	AirTAC	one
light axis	DKNΦ20-40	Japan	one
beeline axletree	SDE40Y	Japan	four
beeline axletree	SDE20Y	Japan	eight
beeline axletree	SDE16Y	Japan	10
beeline axletree	SDE12Y	Japan	18
roll-pin axletree	IKDCF18	Japan	1
roll-pin axletree	IKDCF12	Japan	5
hot relay	NR2-25	China	3
relay	CJX2-25	China	1
relay	CJX2-12	China	3
breaker	DZ47-60-C32	China	1
breaker	DZ47-60-C15	China	1
breaker	DZ47-60-C10	China	1
sensor	LJC30A-H-Z/AB2	Shanghai, China	1
